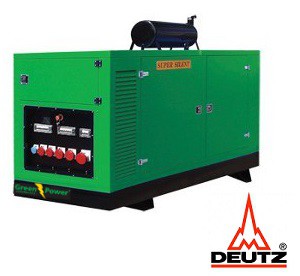

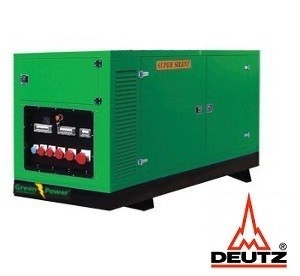

GREENPOWER DEUTZ Diesel Power generator 100kVA 80kW Soundproof canopy Manual starting
ELVERK GreenPower coil water cooled diesel engine of the brand Deutz. Supplied with stable framework and Green Power electrical panel, voltmeter, frequency meter, ammeter, hour meter, starter key and indicator panel for oil, battery charge and low fuel level.
ELECTRIC GREENPOWER
- Prime running power (PRP) 100kVA, 80kW.
- Emergency stand by power (ESP)110kVA, 88kW.
- 400V / 230 V @ 50 Hz 1500 rpm.
- High quality and reliable 4-cylinder Deutz diesel engine
- Easily operated control panel.
- Brushless permanent magnetized generator IP22 with optional electronic AVR.
- Fuel tank 120 liters with leakage protection
» Engine BF4M1013EC Reference Guide
| Technical Data | |
| Generator Engine | BF4M1013EC |
| Type | Water-cooled, 4 stroke diesel engine |
| Number of Cylinder | 4, in Line |
| Prime running power (PRP) | 100kVA/ 80 kW |
| Emergency stand by power (ESP) | 110kVA/88kW |
| Rated Voltage | 400V/230V |
| Speed | 1500 rpm |
| Bore/Stroke | 108/130 mm |
| Displacement | 4.76 I |
| Fuel tank | 120 liters |
| Engine power | 126.6 / 93 (hp / kW) |
| 75% consumption | 16.5 (l / h) |
| Rated current | 160 A |
| Minimum idle speed | 650 min-1 |
| Max. rated speed | 2300 rpm |
| Specific fuel consumption | 225 g/kWh |
| Weight | 1470 kg |
| Current | 144 A |
| Moving | 4764cc |
| Noise level | 69dB (A) |
| Frequency | 50Hz |
| Dimensions (L x B x H) | 2300 x 1050 x 1590 mm |
General specifications for silent generator:
- Modular design
- Anti-Corrosion powder coated
- Insulated with acoustic foam lining
- Central lifting ring, exhaust pipe can be removed, which is easy to transport
- Lockable doors with key
- Protective mesh for rotating parts
- Exterior emergency stop push button
- Thermally insulated engine exhaust system
- Doors fitted on each side
- Panel observing window
- Access to the radiator fill or cap
- 20 ', 30'or 40' container canopy is optionally
- Color is optional
- Fuel gauge or lube drain valve is optional
- Normal or super soundproof canopy is optional
- Base frame fuel tank or profile fuel tank is optional
- The muffler fixed position depend on the output power of the gen-set
- With specially treated steel sheet
- Stainless steel locks
- Control panel viewing window for monitoring the status of the generator set
- Good ventilation system and anti-heat radiation saturation
- Effective anti-vibration devices to ensure generator driven steadily
- Super silent materials inside to ensure the noise lower than 68 dB 7 meters away
- Emergency stop button mounted outside
- Side lockable door easy for maintenance and installation
- Lube oil and cooling water drain pipe to the exterior of the canopy
- Fuel tank built with level indicator
| Standard equipment |
Other configurations |
| • Circuit breakers • Voltage meter • Ampere meter • Frequency meter • Hour meter • Emergency stop button • Safety device in the engine for: - high water temperature - low oil pressure - low fuel level - battery charging error |
• Models with different voltage • 60 Hz version |
| Accessories | |
|
Engine:
- Integrated oil cooling
- Overhead valve
- The two compression and one oil scraper ring (per cylinder)
- Full-flow oil filter cartridge type
- Fuel filter cartridge type
- Electric starter 12V
- Exhaust silencer
- Original Deutz – Water Cooled Diesel Engine
- Fully welded heavy duty base frame & tank.
- Engine liquid spill containment area.
- Fork lift access,
- Simple remote start Genset controller,
- 415 volt Circuit Breaker.
- Original Mecc Alte alternator
- High alternator motor starting capacity.
- Eng/Alt wiring is simple & color coded.
- Circuit breakers in control wiring
- Eng/Alt/Controller manuals included
Alternator:
- Three-phase alternator 12 V or 24 V
- Replaceable cartridge
- Optional connection for cab heating
- Close voltage regulation
- Standard degree of protection IP 22
Greenpower AB reserves the right to make any errors or changes in specifications. © Copyright / Greenpower AB.
