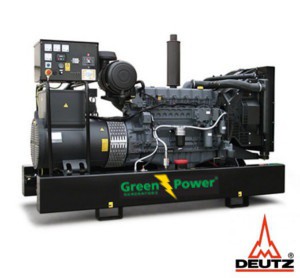

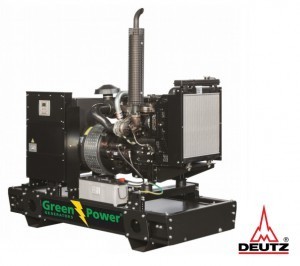

GREENPOWER DEUTZ Diesel Power generator 250kVA 200kW Open frame Manual starting
ELVERK GreenPower with water cooled diesel engine of the brand Deutz. Supplied with stable framework and Green Power electrical panel, voltmeter, frequency meter, ammeter, hour meter, starter key and indicator panel for oil, battery charge and low fuel level.
As an option, we also supply the silenced version.
ELECTRIC GREENPOWER
- Prime running power (PRP) 250kVA, 200kW.
- Emergency stand by power (ESP) 275kVA, 220kW.
- 400/230 V @ 50 Hz 1500 rpm.
- High quality and reliable 6-cylinder Deutz diesel engine
- Easily operated control panel.
- Brushless permanent magnetized generator IP22 with optional electronic AVR.
- Fuel tank 250 liters with leak protection
» Engine TCD 2013 L064V Reference Guide
| Technical Data | |
| Generator Engine | TCD 2013 L064V |
| Type | Water-cooled, 4 stroke,1500 rpm diesel engine |
| Number of Cylinder | 6, in Line |
| Prime running power (PRP) | 250kVA/ 200kW |
| Emergency stand by power (ESP) | 275kVA/220kW |
| Rated Voltage | 400V/230V |
| Speed | 1500 rpm |
| Bore/Stroke | 108/130 mm |
| Displacement | 7.2 Lt |
| Fuel tank | 250 liters |
| Engine power | 294/216 (hp / kW) |
| 75% fuel consumption | 40 (l / h) |
| Rated current | 400 A |
| Minimum idle speed | 800 min-1 |
| Max. rated speed | 2300 rpm |
| Engine fuel consumption | 204 g/kWh |
| Weight | 2200 Kg |
| Moving | 7150cc |
| Noise level | 69dB (A) |
| Frequency | 50Hz |
| Dimensions (L x B x H) | 2800 x 1310 x 1800 mm |
| Standard equipment |
Other configurations |
| • Circuit breakers • Voltage meter • Ampere meter • Frequency meter • Hour meter • Emergency stop button • Safety device in the engine for: - high water temperature - low oil pressure - low fuel level - battery charging error |
• Models with different voltage • 60 Hz version |
| Accessories | |
|
Engine
- Integrated oil cooling
- Overhead valve
- The two compression and one oil scraper ring (per cylinder)
- Full-flow oil filter cartridge type
- Fuel filter cartridge type
- Electric starter 12V
- Exhaust silencer
- Original Deutz - Water Cooled Diesel Engine
- Fully welded heavy duty base frame & tank.
- Engine liquid spill containment area.
- 500 hour service intervals
- Remote Start - Genset Controller,
- 415 Volt Circuit Breaker.
- Mecc Alte Alternator
- 300 % - Alternator motor starting capacity.
- Eng/Alt wiring is simple & color coded.
- Circuit breakers in control wiring
- Eng/Alt/Controller manuals included
Alternator:
- Three-phase alternator 12 V or 24 V
- Replaceable cartridge
- Optional connection for cab heating
- Close voltage regulation
- Standard degree of protection IP 22
