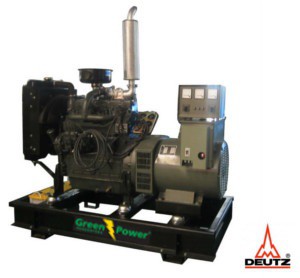

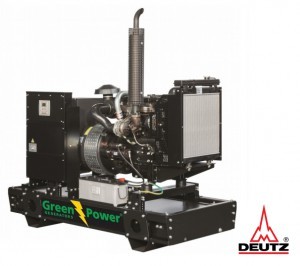

GREENPOWER DEUTZ Diesel Power generator 30kVA 24kW Open frame Manual starting engine F4M 2011, weight 670kg
ELVERK GreenPower med oljekyld dieselmotor av märket Deutz. Levereras med stabilt ramverk och Green Power elektropanel, voltmätare, frekvensmätare, amperemätare, tim-mätare, startnyckel och indikationspanel för olja, batteriladdning och låg bränslenivå.
Som tillval levererar vi även tystade versionen.
ELVERK GREENPOWER
- Prime running power (PRP) 30kVA, 24kW.
- Emergency stand by power (ESP) 33kVA, 26,4kW .
- 400 / 230 V @ 50 Hz 1500 rpm.
- Hög kvalitet och pålitlig 4-cylindrig Deutz dieselmotor
- Lättmanövrerad kontrollpanel.
- Borstlös permanent magnetiserad generator IP22 med tillval elektronisk AVR.
- Bränsletank 90liter med läckageskydd
» Engine F4M2011 Reference Guide
» Click here to see Datasheet
| Technical Data | |
| Generator Engine | F4M 2011 |
| Type | Oil cooled, 4 Stroke, 1500 rpm diesel engine |
| Number of Cylinder | 4 |
| Cylinder arrangement | in-line |
| Prime running power (PRP) | 30kVA/24kW |
| Emergency stand by power (ESP) | 33kVA/26.4kW |
| Rated Voltage | 400V/230V |
| Speed | 1500 rpm |
| Bore/Stroke | 94/112 mm |
| Displacement | 3.11 Lt |
| Motor power | 37 / 27.6 (hp / kW) |
| 75% consumption | 5.5 (l / h) |
| Rated current | 45 A |
| Minimum idle speed | 900 rpm |
| Max. rated speed | 2800 rpm |
| Specific fuel consumption | 213 g/kWh |
| Weight | 645 Kg |
| Fuel tank | 90 liters with leakage protection |
| Noise level | 69dB (A) |
| Frequency | 50Hz |
| Battery Voltage | 12 V |
| Dimensions (L x B x H) | 1650 x 850 x 1600 mm |
| Standard equipment |
Other configurations |
| • Circuit breakers • Voltage meter • Ampere meter • Frequency meter • Hour meter • Emergency stop button • Safety device in the engine for: - high water temperature - low oil pressure - low fuel level - battery charging error |
• Models with different voltage • 60 Hz version |
| Accessories | |
|
Engine:
- Integrated oil cooling
- Overhead valve
- The two compression and one oil scraper ring (per cylinder)
- Full-flow oil filter cartridge type
- Fuel filter cartridge type
- Electric starter 12V
- Exhaust silencer
- Original Deutz F3M2011 Oil Cooled Diesel Engine
- Mecc Alte Alternator
- Silenced to 68 db(A) @ 7 meters
- Single point lift, Fork lift access,
- Fully welded heavy duty canopy 2 mm.
- Heavy duty fuel tank & frame – 4mm walls.
- Internal muffler and exhaust pipe
- Engine liquid spill containment area.
- Mechanical fuel level gauge,
- Fuel tank drain tap, Oil drain tap and pipe
- 500 hour service intervals
- Feature packed genset controller – BE 24,
- 416 volt three pole Circuit Breaker.
- High alternator motor starting capacity.
- Eng/Alt wiring is simple & color coded.
- Circuit breakers in control wiring
Alternator:
- Three-phase alternator, 14 V; 55 A (Standard)
- Replaceable cartridge
- Optional connection for cab heating
- Close voltage regulation
- Standard degree of protection IP 22
