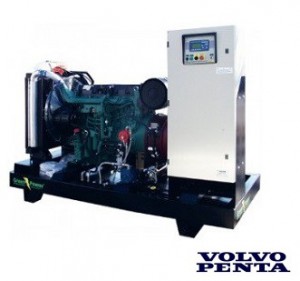

GREENPOWER Volvo Diesel Power generator 185kVA 148kW Open frame Automatic starting
Greenpower Equipped with stable framework, Green Power electrical panel, voltmeter, frequency meter, ampere meter, hour meter, key switch and indicator panel for the oil, battery charging and low fuel level. As an option, we also produce the silenced version.
Specification
- Prime running Power(PRP) 185kVA 148kW, Emergency standby Power(ESP) 204kVA 163kW at 230/400v @50hz 1500rpm
- High quality and reliable 4 cylinder, Volvo Penta diesel engine
- Ideal for business applications
- Automatic changeover (ATS), Maintenance Free Batteries and Trickle Charger Included
- Brushless alternator with AVR provides stable output
- High temperature and low oil, water and fuel protection to protect against engine damage
- Easy to use Digital Controller with Auto and Manual Start Options
» Click Here to view the Engine Datasheet
» Click here to see Datasheet
| Technical Data | |
| Generator engine | VOLVO TAD 732GE |
| Type | 6 cycle, water-cooled, diesel engine |
| Direction of rotation (seen from flywheel) | Counter-Clock wise |
| No of cylinders | 6 |
| Cylinders arrangement | In-line |
| Displacement | 7.15 Liters |
| Bore x Stroke | 108 x 130 mm |
| Prime running Power(PRP) | 185kVA/148 kW |
| Emergency standby Power(ESP) | 206kVA/165 kW |
| Speed | 1500 rpm |
| Motor power | 213 hp/ 159kW |
| 75% consumption | 32 (l / h) |
| Rated current | 400 Amp |
| Rated voltage | 400V/230V |
| Landuse type of unit | Low noise, Automation type |
| Engine power, 1500 rpm | 201 kW |
| Highest full load speed | 1500 rpm |
| Low idle rpm | 800-950 rpm |
| Dimension (LxBxH) | 2800 x 1310 x 1800 |
| Fuel tank | 250 liters |
| Noise level | 69dB (A) |
| Frequency | 50Hz |
| Weight | 2105 Kg |
| Standard equipment | Other configurations |
|
|
| Accessories |
|
|
Engine
- Volvo heavy duty diesel engine
- Six cylinder equipped with Water cooling
- Electronic governor control system
- Replaceable wet type cylinder liners
- Replaceable fuel filter, oil filter and dry element air filter
- Cooling radiator and fan
- Fuel connection hoses and manual sump oil drain valve
- Exhaust silencer
- Maintenance free battery including rack and cables
- Jacket water heater (as option)
- Volvo Engine Manual
Alternator
- Brushless, single bearing system, 4 poles
- Insulation class H with circuit breaker protection
- Standard degree of protection IP 22
- Self-exciting and self-regulating
- Screen protected and drip proof
- Close voltage regulation
