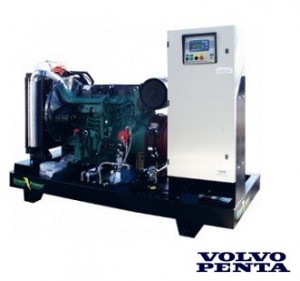

GREENPOWER Volvo Diesel Power generator 200kVA 160kW Open frame Automatic starting
Greenpower Equipped with stable framework, Green Power electrical panel, voltmeter, frequency meter, ampere meter, hour meter, key switch and indicator panel for the oil, battery charging and low fuel level. As an option, we also produce the silenced version.
Specification
- Prime running Power(PRP) 200kVA 160kW, Emergency standby Power(ESP) 220kVA 176kW at 230/400v @50hz 1500rpm
- High quality and reliable 6 cylinder, Volvo Penta diesel engine
- Ideal for business applications
- Automatic changeover (ATS), Maintenance Free Batteries and Trickle Charger Included
- Brushless alternator with AVR provides stable output
- High temperature and low oil, water and fuel protection to protect against engine damage
- Easy to use Digital Controller with Auto and Manual Start Options
» Click Here to view the Engine Datasheet
» Click here to Datasheet
| Technical Data | |
| Generator engine | VOLVO TAD 733GE |
| Type | 4Cycle, water-cooled, diesel engine |
| Direction of rotation (seen from flywheel) | Counter-Clock wise |
| No of cylinders | 6 |
| Cylinders arrangement | Vertical In-line |
| Displacement | 7.15 Liters |
| Bore x Stroke | 108 x 130 mm |
| Prime running Power(PRP) | 200 kVA/160 kW |
| Emergency standby Power(ESP) | 224kVA/179 kW |
| Speed | 1500 rpm |
| Motor power | 236 hp/ 176kW |
| 75% fuel consumption | 35 (l / h) |
| Fuel tank | 250 liters |
| Rated current | 125 Amp |
| Rated voltage | 400V/230V |
| Landuse type of unit | Low noise, Automation type |
| Engine power, 1500 rpm | 201 kW |
| Highest full load speed | 1500 rpm |
| Low idle rpm | 800-950 rpm |
| Moving | 7150cc |
| Noise level | 69dB (A) |
| Frequency | 50Hz |
| Dimension (LxBxH) | 2800 x 1310 x 1800 mm |
| Weight | 2150 Kg |
| Standard equipment | Other configurations |
|
|
| Accessories |
|
|
Standard Genset Specifications
Engine
- Volvo heavy duty diesel engine
- Six cylinder equipped with Water cooling
- Electronic governor control system
- Replaceable wet type cylinder liners
- Replaceable fuel filter, oil filter and dry element air filter
- Cooling radiator and fan
- Fuel connection hoses and manual sump oil drain valve
- Exhaust silencer
- Maintenance free battery including rack and cables
- Jacket water heater (as option)
- Volvo Engine Manual
Alternator
- Brushless, single bearing system, 4 poles
- Insulation class H with circuit breaker protection
- Standard degree of protection IP 22
- Self-exciting and self-regulating
- Screen protected and drip proof
- Close voltage regulation
Greenpower AB reserves the right to make any errors or changes in specifications. © Copyright / Greenpower AB.
