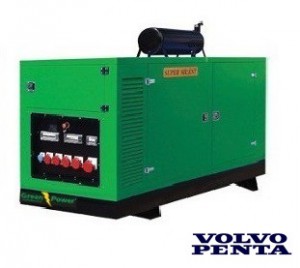

GREENPOWER Volvo Diesel Power generator 410kVA 328kW Soundproof canopy Manual starting
Greenpower Equipped with stable framework, Green Power electrical panel, voltmeter, frequency meter, ampere meter, hour meter, key switch and indicator panel for the oil, battery charging and low fuel level. As an option, we also produce the silenced version.
Specification
- Prime running Power(PRP) 410kVA 328kW, Emergency standby Power(ESP) 452kVA 362kW at 230/400v @50hz 1500rpm
- High quality and reliable 6 cylinder, Volvo Penta diesel engine
- Ideal for business applications
- Automatic changeover (ATS), Maintenance Free Batteries and Trickle Charger Included
- Brushless alternator with AVR provides stable output
- High temperature and low oil, water and fuel protection to protect against engine damage
- Easy to use Digital Controller with Auto and Manual Start Options
» Click Here to view the Engine Datasheet
» Click here to display Engine Datasheet
| Technical Data | |
| Generator engine | VOLVO TAD 1344GE |
| Type | 4 cycle, water-cooled, diesel engine |
| Direction of rotation (seen from flywheel) | Counter-Clock wise |
| No of cylinders | 6 |
| Cylinders arrangement | In-line |
| Displacement | 12.78 Liters |
| Bore x Stroke | 131 x 158 mm |
| Prime running Power(PRP) | 410kVA/328 kW |
| Emergency standby Power(ESP) | 452kVA/362 kW |
| Speed | 1500 rpm |
| Motor power | 475hp/ 354kW |
| 75% fuel consumption | 65 (l / h) |
| Fuel tank | 400 liter |
| Rated current | 630 Amp |
| Rated voltage | 400V/230V |
| Landuse type of unit | Low Noise, Automation Type |
| Highest full load speed | 1500 rpm |
| Low idle rpm | 800 - 950 rpm |
| Weight | 4395 Kg |
| Moving | 12780cc |
| Noise level | 69dB (A) |
| Frequency | 50Hz |
| Dimension (LxBxH) | 4300 x 1750 x 2350 mm |
General Specification for silent Generator :
- Modular Design
- Anti Corrosion powder coated
- Insulated with acoustic foam lining
- Central lifting ring, exhaust pipe can be removed, which is easy to transport
- Lockable doors with key
- Protective mesh for rotating parts
- Exterior emergency stop push button
- Thermally insulated engine exhaust system
- Doors fitted on each side
- Panel observing window
- Access to the radiator fill or cap
- 20', 30' or 40' conopy is optional
- Color is optional
- Fuel gauge or lube drain valve is optional
- Normal or super soundproof canopy is optional
- Base frame fuel tank or profile fuel tank is optional
- The muffler fixed position depend on the output power of the Gen-set
Silent Generator set Canopy :
- Specially treated steel sheet
- Satinless steel locks
- Control panel viewing window for monitoring the status of the generator set
- Good ventilation system and anti-heat radiation saturation
- Effective anti-vibration devices to ensure generator driven steadily
- Super silent materials inside to ensure the noise lower than 68 dB 7 meters away
- Emergency stop button mounted outside
- Side lockable door easy for maintenance and installation
- Lube oil and cooling water drain pipe to the exterior of the canopy
- Fuel tank built with level indicator
| Standard equipment | Other configurations |
|
|
| Accessories |
|
|
Standard Genset Specifications
Engine
- Volvo heavy duty diesel engine
- Six cylinder equipped with Water cooling
- Electronic governor control system
- Replaceable wet type cylinder liners
- Replaceable fuel filter, oil filter and dry element air filter
- Cooling radiator and fan
- Fuel connection hoses and manual sump oil drain valve
- Exhaust silencer
- Maintenance free battery including rack and cables
- Jacket water heater (as option)
- Volvo Engine Manual
- Brushless, single bearing system, 4 poles
- Insulation class H with circuit breaker protection
- Standard degree of protection IP 22
- Self-exciting and self-regulating
- Screen protected and drip proof
- Close voltage regulation
