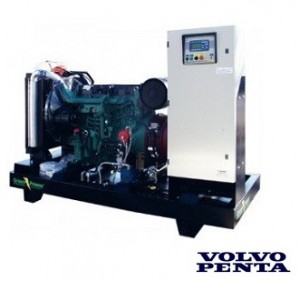

GREENPOWER Volvo Diesel Power generator 450kVA 360kW Open frame Manual starting
Greenpower Equipped with stable framework, Green Power electrical panel, voltmeter, frequency meter, ampere meter, hour meter, key switch and indicator panel for the oil, battery charging and low fuel level. As an option, we also produce the silenced version.
Specification
- Prime running Power (PRP) 450kVA 360kW, Emergency stand by power (ESP) 495kVA 396kW at 230/400v @50hz 1500rpm
- High quality and reliable 6 cylinder, Volvo Penta diesel engine
- Ideal for business applications
- Automatic changeover (ATS), Maintenance Free Batteries and Trickle Charger Included
- Brushless alternator with AVR provides stable output
- High temperature and low oil, water and fuel protection to protect against engine damage
- Easy to use Digital Controller with Auto and Manual Start Options
» Click Here to view the Engine Datasheet
» Click here to see Datasheet
| Technical Data | |
| Generator engine | VOLVO TAD 1345GE |
| Type | 4 cycle, water-cooled, diesel engine |
| Direction of rotation (seen from flywheel) | Counter-Clock wise |
| No of cylinders | 6 |
| Cylinders arrangement | In-line |
| Displacement | 12.78 Liters |
| Bore x Stroke | 131 x 158 mm |
| Prime running Power (PRP) | 450kVA/360 kW |
| Emergency stand by power (ESP) | 501kVA/401 kw |
| Speed | 1500 rpm |
| Motor power | 520hp/ 388kW |
| 75% fuel consumption | 70 (l / h) |
| Fuel tank | 400 liter |
| Rated current | 800 Amp |
| Rated voltage | 400V/230V |
| Landuse type of unit | Low noise, Automation type |
| Highest full load speed | 1500 rpm |
| Low idle rpm | 800-950 rpm |
| Weight | 3445Kg |
| Moving | 12780cc |
| Noise level | 69dB (A) |
| Frequency | 50Hz |
| Dimension (LxBxH) | 2950 x 1550 x 2100 mm |
| Standard equipment | Other configurations |
|
|
| Accessories |
|
|
Standard Genset Specifications
Engine
- Volvo heavy duty diesel engine
- Six cylinder equipped with Water cooling
- Electronic governor control system
- Replaceable wet type cylinder liners
- Replaceable fuel filter, oil filter and dry element air filter
- Cooling radiator and fan
- Fuel connection hoses and manual sump oil drain valve
- Exhaust silencer
- Maintenance free battery including rack and cables
- Jacket water heater (as option)
- Volvo Engine Manual
- Brushless, single bearing system, 4 poles
- Insulation class H with circuit breaker protection
- Standard degree of protection IP 22
- Self-exciting and self-regulating
- Screen protected and drip proof
- Close voltage regulation
