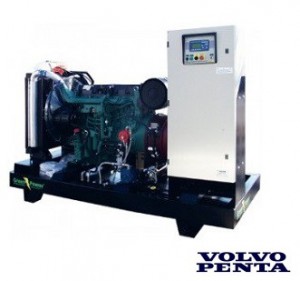

GREENPOWER Volvo Diesel Power generator 85kVA 68kW Open frame Automatic starting
Greenpower Equipped with stable framework, Green Power electrical panel, voltmeter, frequency meter, ampere meter, hour meter, key switch and indicator panel for the oil, battery charging and low fuel level. As an option, we also produce the silenced version.
Specification
- Prime running Power (PRP) 68kW 85kVA , Emergency stand by power (ESP) 75.2Kw 94kVA at 230/400v @50hz 1500rpm
- High quality and reliable 4 cylinder, Volvo Penta diesel engine
- Ideal for business applications
- Automatic changeover (ATS), Maintenance Free Batteries and Trickle Charger Included
- Brushless alternator with AVR provides stable output
- High temperature and low oil, water and fuel protection to protect against engine damage
- Easy to use Digital Controller with Auto and Manual Start Options
» Click Here to view the Engine Datasheet
» Click here to see Datasheet
| Technical Data | |
| Generator engine | VOLVO TAD 530GE |
| Type | 4 cycle, water-cooled, diesel engine |
| Direction of rotation (seen from flywheel) | Counter-Clock wise |
| No of cylinders | 4 |
| Cylinders arrangement | In-line |
| Displacement | 4.76 Liters |
| Bore x Stroke | 108 x 130 mm |
| Prime running Power (PRP) | 85 kVA/68 kW |
| Emergency stand by power (ESP) | 94kVA/75.2 kW |
| Speed | 1500 rpm |
| Motor power | 100.5 hk/75 kW |
| Fuel consumption | 16 (liters / hour) |
| Fuel tank | 120 liters |
| Cylinder volume | 4760 cm3 |
| Consumption | 14.3 liter/time |
| Tank liter | 50 Liter |
| Rated current | 125 Amp |
| Rated voltage | 400V/230V |
| Landuse type of unit | Low noise, Automation type |
| Engine power, 1500 rpm | 89 kW |
| Highest full load speed, | 1500 rpm |
| Moving | 4760cc |
| Noise level | 69dB (A) |
| Frequency | 50Hz |
| Weight | 1380 Kg |
| Dimension (LxBxH) | 2400 x 1100 x 2000 mm |
| Standard equipment | Other configurations |
|
|
| Accessories |
|
|
Standard Genset Specifications
Engine
Greenpower AB reserves the right to make any errors or changes in specifications. © Copyright / Greenpower AB.
- Volvo heavy duty diesel engine
- Four cylinder equipped with Water cooling
- Electronic governor control system
- Replaceable wet type cylinder liners
- Replaceable fuel filter, oil filter and dry element air filter
- Cooling radiator and fan
- Fuel connection hoses and manual sump oil drain valve
- Exhaust silencer
- Maintenance free battery including rack and cables
- Jacket water heater (as option)
- Volvo Engine Manual
Alternator
- Brushless, single bearing system, 4 poles
- Insulation class H with circuit breaker protection
- Standard degree of protection IP 22
- Self-exciting and self-regulating
- Screen protected and drip proof
- Close voltage regulation
