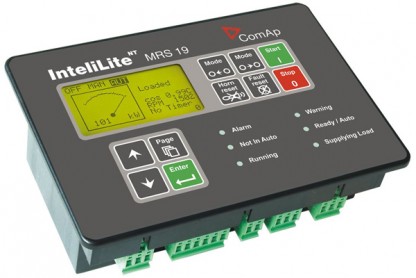

InteliLite NT MRS 19 Gen-Set Controller
InteliLite NT MRS 19 Gen-Set Controller
Features
Compact gen-set controller for single operating genset
Manual and remote start (MRS) applications
Full gen-set monitoring and protection
Outstanding EFI engine support with diagnostic messages in plain text via J1939
Detailed RTC event and performance log
Multiple languages (user changeable) in controller, even more in installation suite
Plug-in and CAN bus extension modules capability
WebSupervisor, AirGate and LOCATE support*
Automatic SMS on alarm or event & gen-set control over SMS*
On-line control and monitoring over web pages (embedded web server) via plug & play IB-Lite
Optional GSM/GPRS modem/wireless Internet via IL-NT GPRS
Fuel theft protection and Total fuel consumption monitoring
Alternative switchable configuration
6 LED diodes indicating gen-set status
Automatic GCB control
Magnetic pickup input
D+ preexcitation terminal
True RMS measurement
3 phase power measurement
3 configurable analog inputs
7 binary inputs
7 binary outputs
UL/ULC approved
Meets US standards and sold by ComAp LLC
* Plug-in module required
|
InteliLite NT MRS 19 Controller/Function |
|
| Voltage supply | 8-36V DC |
| Operating temperature | -40°F to +158°F |
| Nominal frequency | 50-60 Hz |
| Nominal input current (from CT) | 5 A |
| Number of Binary inputs | 7 |
| Number of Binary outputs | 7 |
| Number of Analogue input | 3 (0–20 mA or Resistive – jumper selectable) |
| Current range | 5 A |
| Maximal measured current | 10 A |
| Voltage range | 277 V p-n, 480 V p-p |
| Maximal measured voltage |
340 V p-n |
| Display | Graphic 128 × 64 pixels display, Multiple language capability |
