InteliSys NT BaseBox Marine GeCon
InteliSys NT BaseBox Marine GeCon
The Generator controller software configuration is designed for multiple sets applications with internal load sharer and synchronizer.
Gen-set controller for both single and multiple gensets operating in standby or paralleling modes.
To be used independently or in conjunction with detachable / external colour displays InteliVision 5 and InteliVision 8
Support of engines with ECU (Electronic Control Unit)
Complete integrated gen-set solution and signal sharing via CAN bus – minimum external components needed
Many communication options – easy remote supervising and servicing
Gen-set performance log for easy problem tracing
Automatic synchronizing and power control (via speed governor or ECU)
AMF function, Baseload, Import / Export, Peak shaving, Voltage and PF control (AVR)
Generator measurement: U, I, Hz, kW, kVAr, kVA, PF, kWh, kVAhr
Mains measurement: U, I, Hz, kW, kVAr, PF
True RMS (TRMS) is used with Voltage, Current and Power measurement
Inputs and outputs configurable for various customer needs
Bipolar binary outputs - possibility to use BO as High or Low side switch
RS232 interface with Modbus support; Analog / GSM / ISDN / CDMA modem support; SMS messages; ECU Modbus interface
Controller redundancy
Event-based history (up to 1000 records) with customer-selectable list of stored values; RTC; statistic values
Integrated PLC programmable functions
Integrated fixed and configurable protections

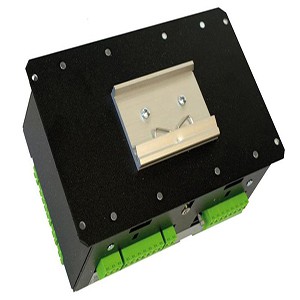

DIN-Rail mount
Customized firmware solution
» InteliGen NT Marine GeCon Manual
