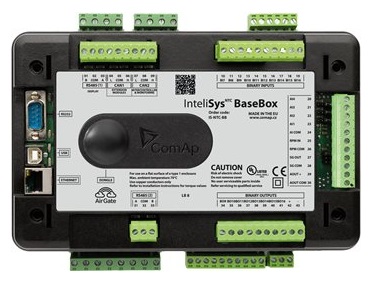

InteliSys NTC BaseBox GeCon

InteliSys NTC BaseBox GeCon
Comprehensive paralleling gen-set controller
Parallel operation upto 32gen-sets
High level control for complex systems
CHP and gas engine controller

Key features

• Load sharing and VAr sharing via CAN
• Virtual shared inputs and outputs via CAN
• Support of wide range of applications
• Single or multiple gen-sets in parallel to mains operation with automatic back up function, multiple island operation.
• Advanced power management function
• Customizable load control in parallel to mains
• Wide range of ECU support
• Extended communication capabilities
• Built-in web server
• Full Modbus slave support
• GPS and AirGate support and more
• Highly configurable
• Timers, Extended internal PLC, Force values and more
• Compatible with ComAp's InteliVision displays
• Active e-mail messaging and SMS
• Extensive built-in protection functions
• Standard protections
• User configurable protection
• Extendable with ComAp's extension modules
• True RMS (TRMS) is used with Voltage, Current and Power measurement

Technical Data
Power Supply Range	8 – 36 VDC
Operating temperature	-40°C to 70°C
Number of binary inputs	16 non-isolated
Number of binary outputs	16 non-isolated
Number of analog inputs	4 non-isolated
Number of analog outputs	1
Magnetic pick-up   Voltage input range	2 Vpk-pk to 50 Veff
Current Measurement Inputs	3 ph Gen current   1 ph Mains current galvanically isolated
Voltage Measurement Inputs	3 ph-n Gen voltage 3 ph-n Mains/Bus voltage
Voltage regulator output Type	5 V TTL PWM / ± 10 VDC with IG-AVRi interface
Speed governor Voltage output	± 10 VDC / max.15 mA
